8110 Unimog U400 - RC MOC

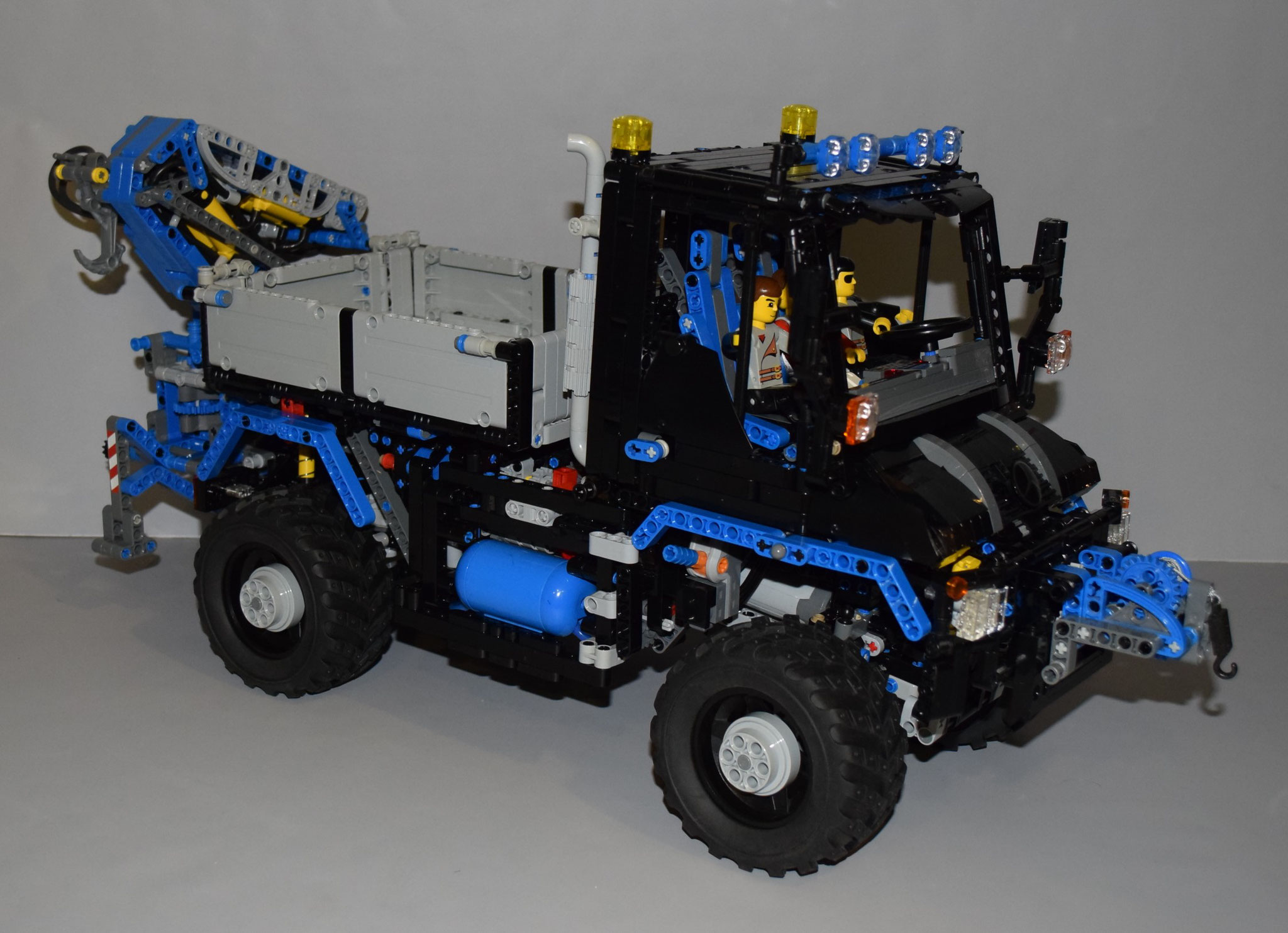

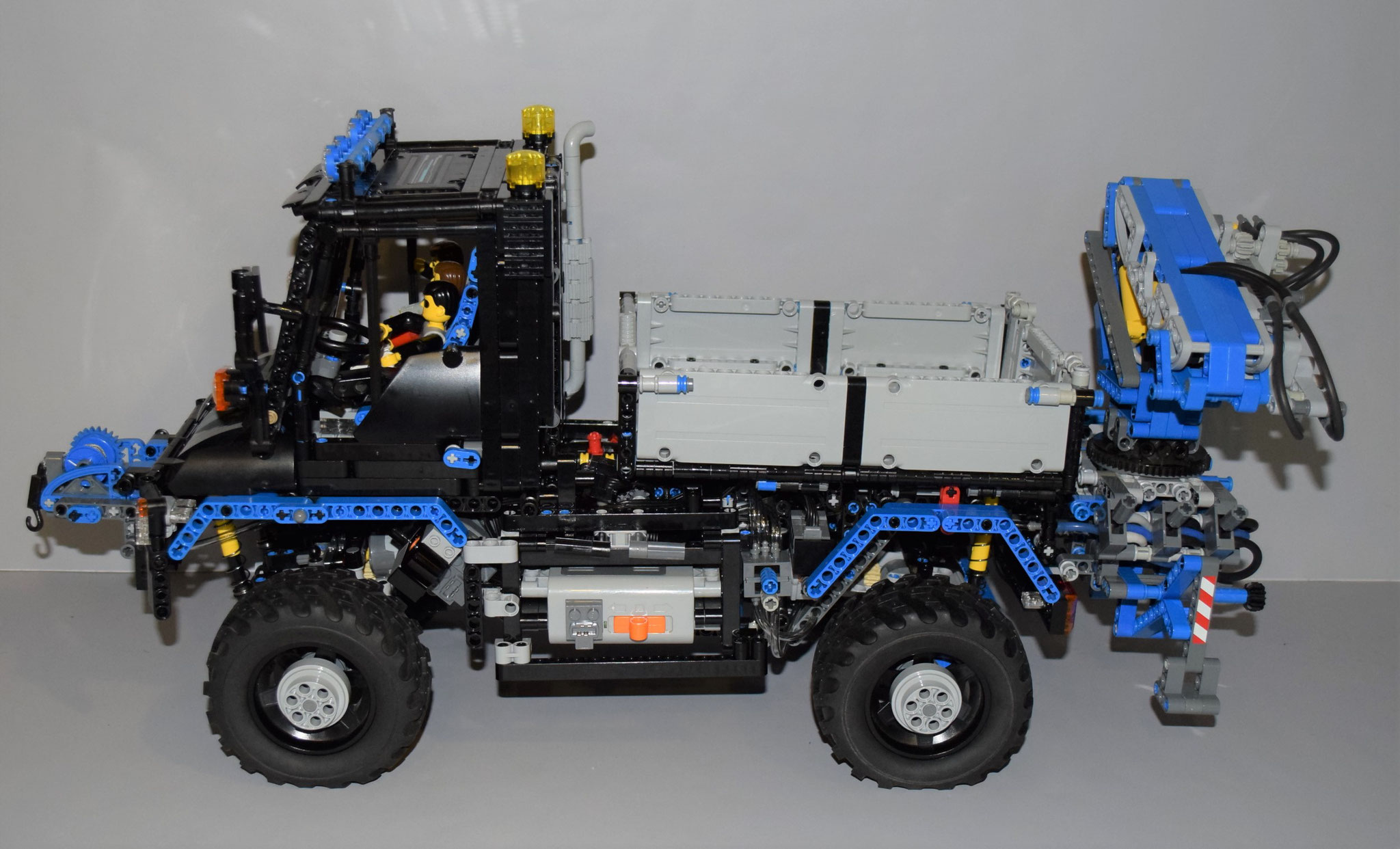

Based on the design of jb70 - MOC 3286, colour adjusted to black/ blue, the Unimog MOC differs in parts from the original one from jb70.

Only the Unimog has over 2,700 parts inclusive of the crane with grapple and winch + snowplough with over 400 parts (wider and higher) + 2x pneumatic digger accessories, (alltoghether over 3.300 parts + extra parts and the four original tires with rims).

All parts are original Lego, (with the exception of the tires, which have the same diameter, but are wider, pneumatic hoses were partly replaced).

Drive and steering are remote controlled, all other functions are manually controlled power functions.

Can climb a slope of 65 degrees using the small gear, (according to jb70).

Additions/ Accessories:

·       Choose between two gears (slow, but a lot of torque or faster)

·       Tipper bed can be tipped in three directions, (back, left and right, based on the idea of  jb70, who was inspired by eurobricks member Kumbbl (http://www.eurobricks.com/forum/index.php?showtopic=57543&st=1675#entry1939279), who was inspired by barman and tripletschiee). Thx to eurobricks community for sharing these great ideas!))

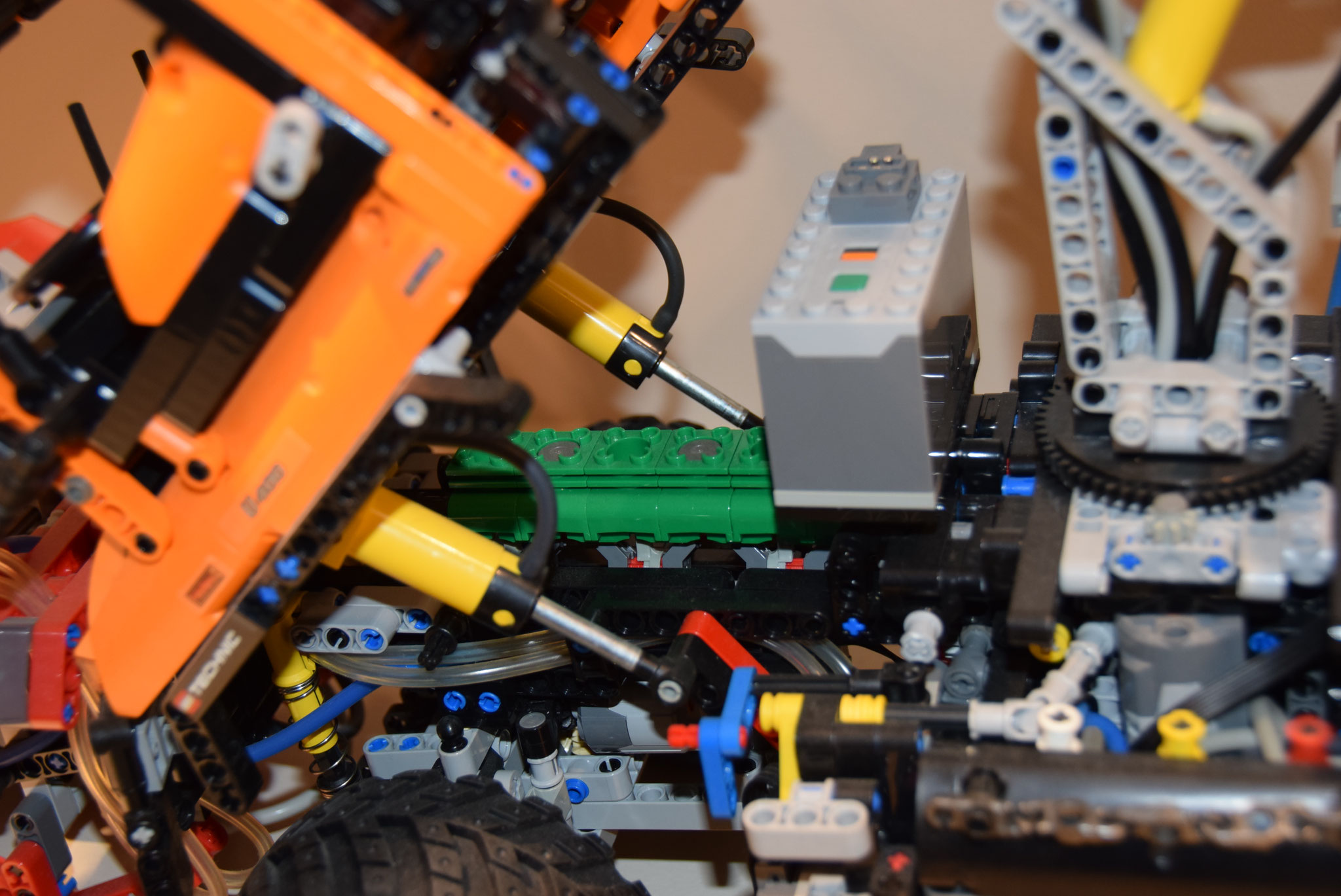

·       Two pneumatic pumps 180° offset to distribute the load

·       Pneumatic air-tank on the left (could be seen as a real tank)

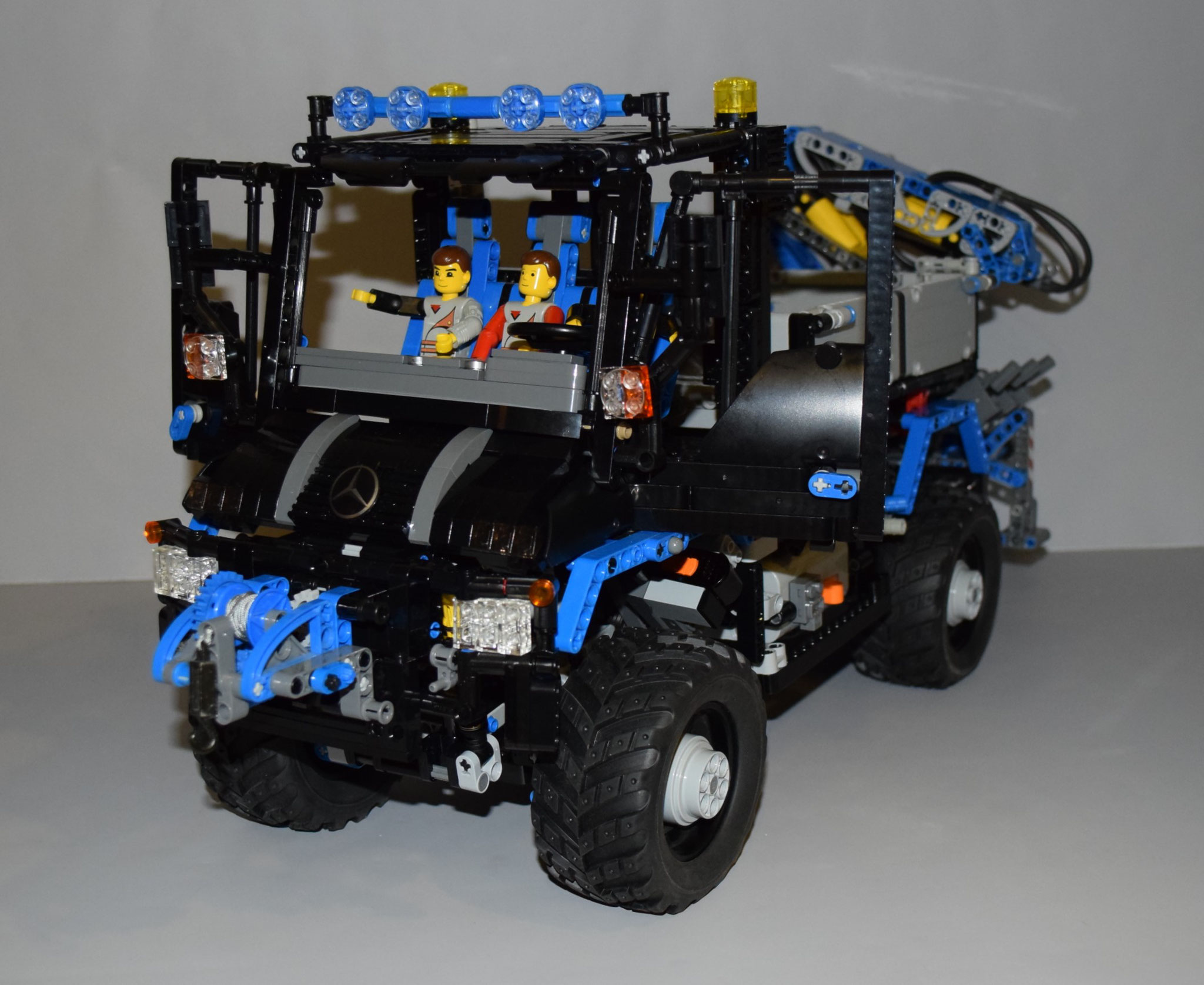

·       LED light - 2 times in the front and 1 time in the back, controlled with a switch

·       Another switch controls the M motor, which drives the pumps, turns the crane and drives the front and back PTO

·       Cabin doors can be opened and locked

·       Side mirrors adjusted, not fixed to the doors in order to be able to open the doors

·       Dummy engine transparent with grey pistons

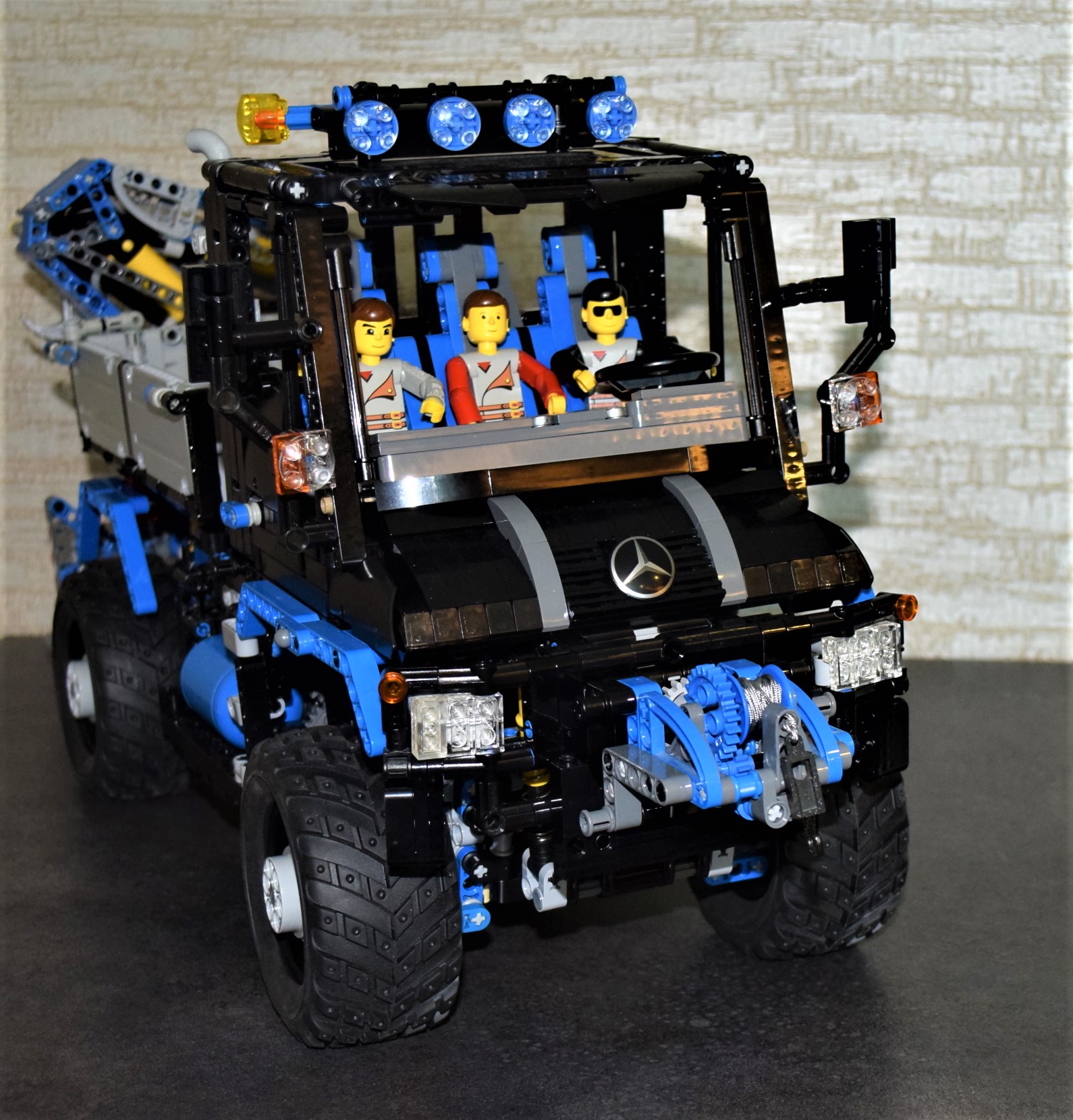

·       Three seats (without adjusting the cabin width, including a three-man team)

·       Detailed dashboard

·       Sun visor

·       4 roof spot lights

·       Exhaust in grey and modified

·       Gear ratio in the wheel hubs changed from 16/16 to 8/24

·       Wide tires (not Lego) with black rims

·       Grey hubcaps

·       Winch in grey/ blue with small metal hook, stopper and grey rope

·       Snowplow with pneumatic, wider and higher with small flags

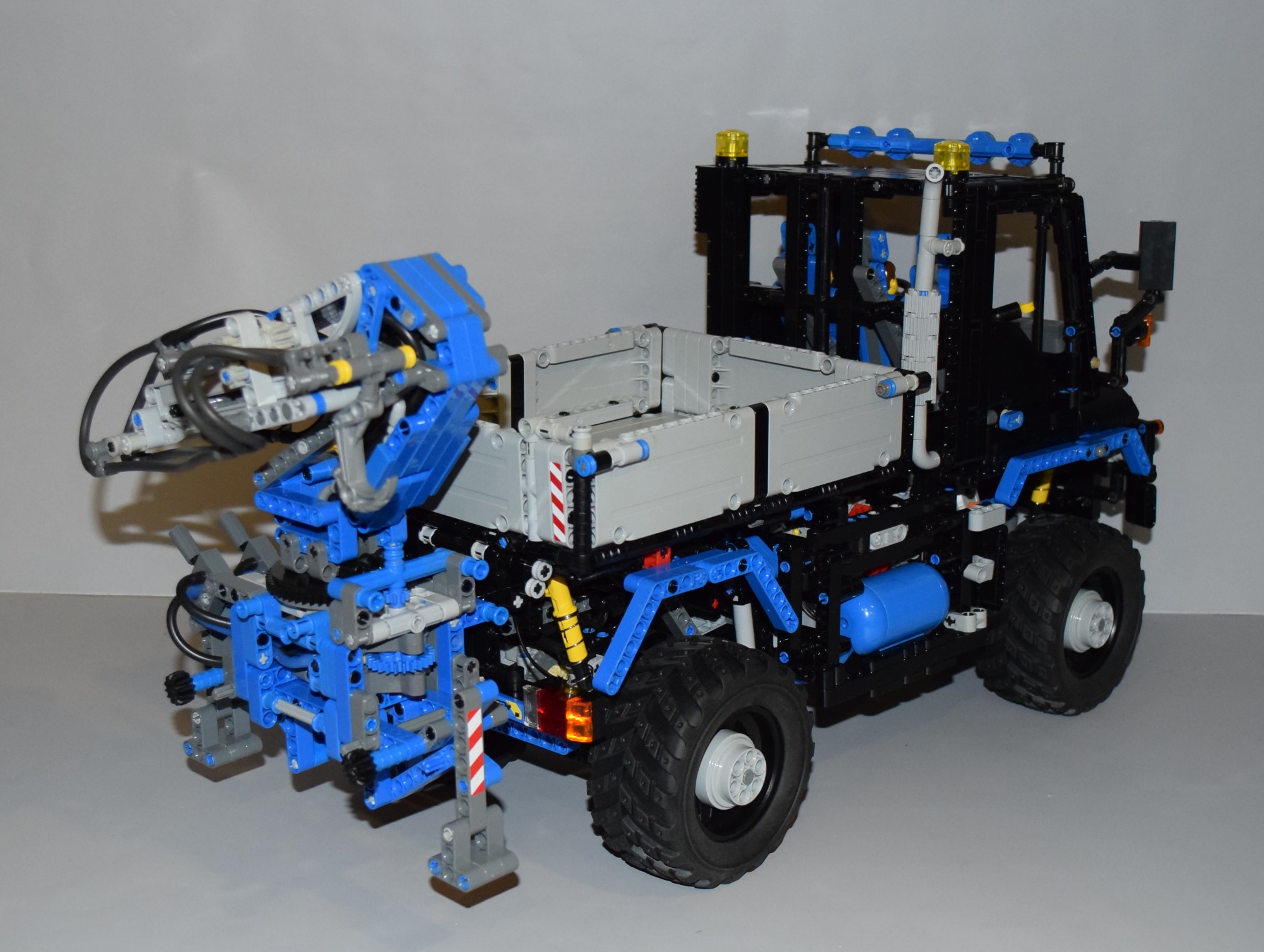

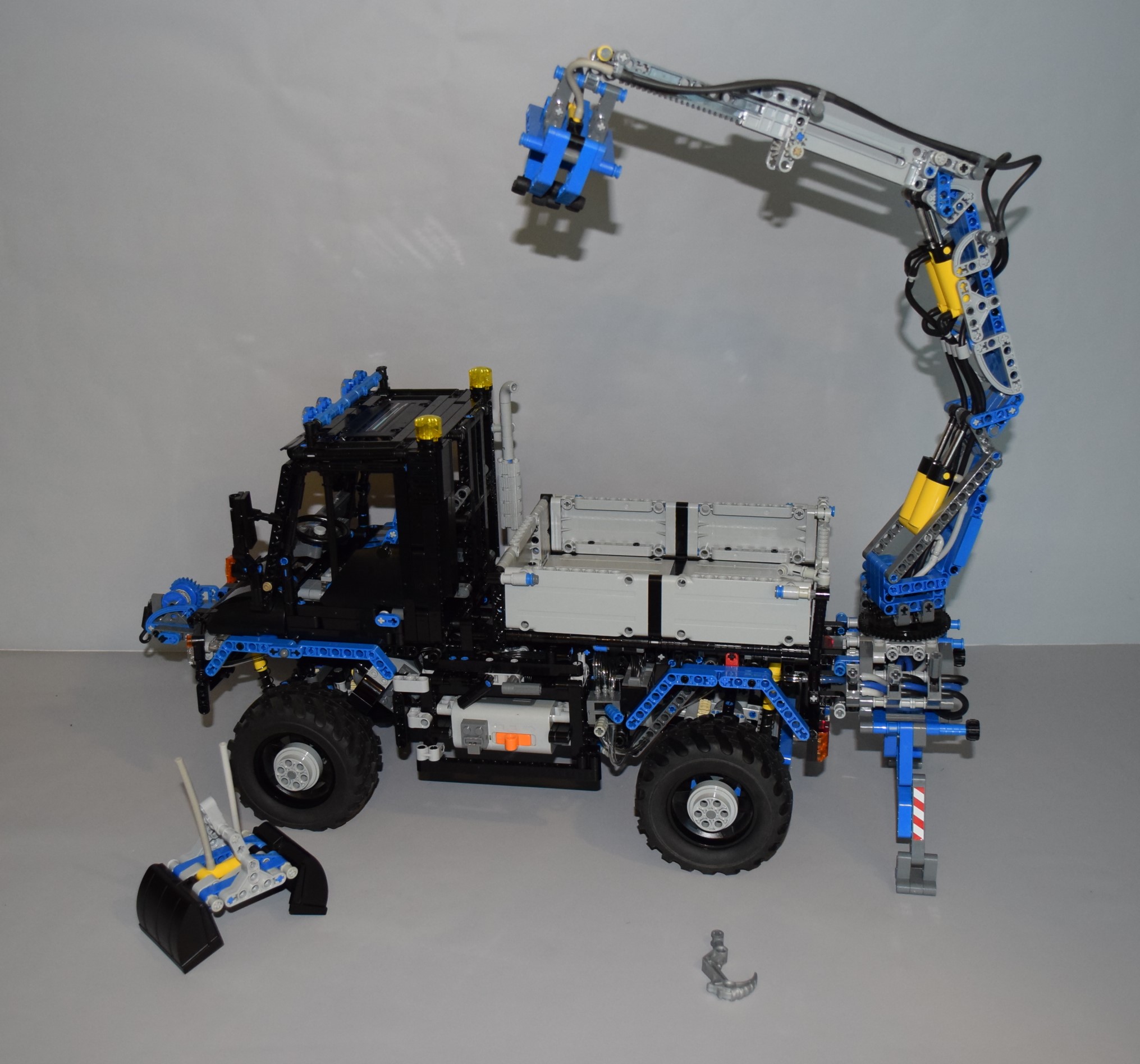

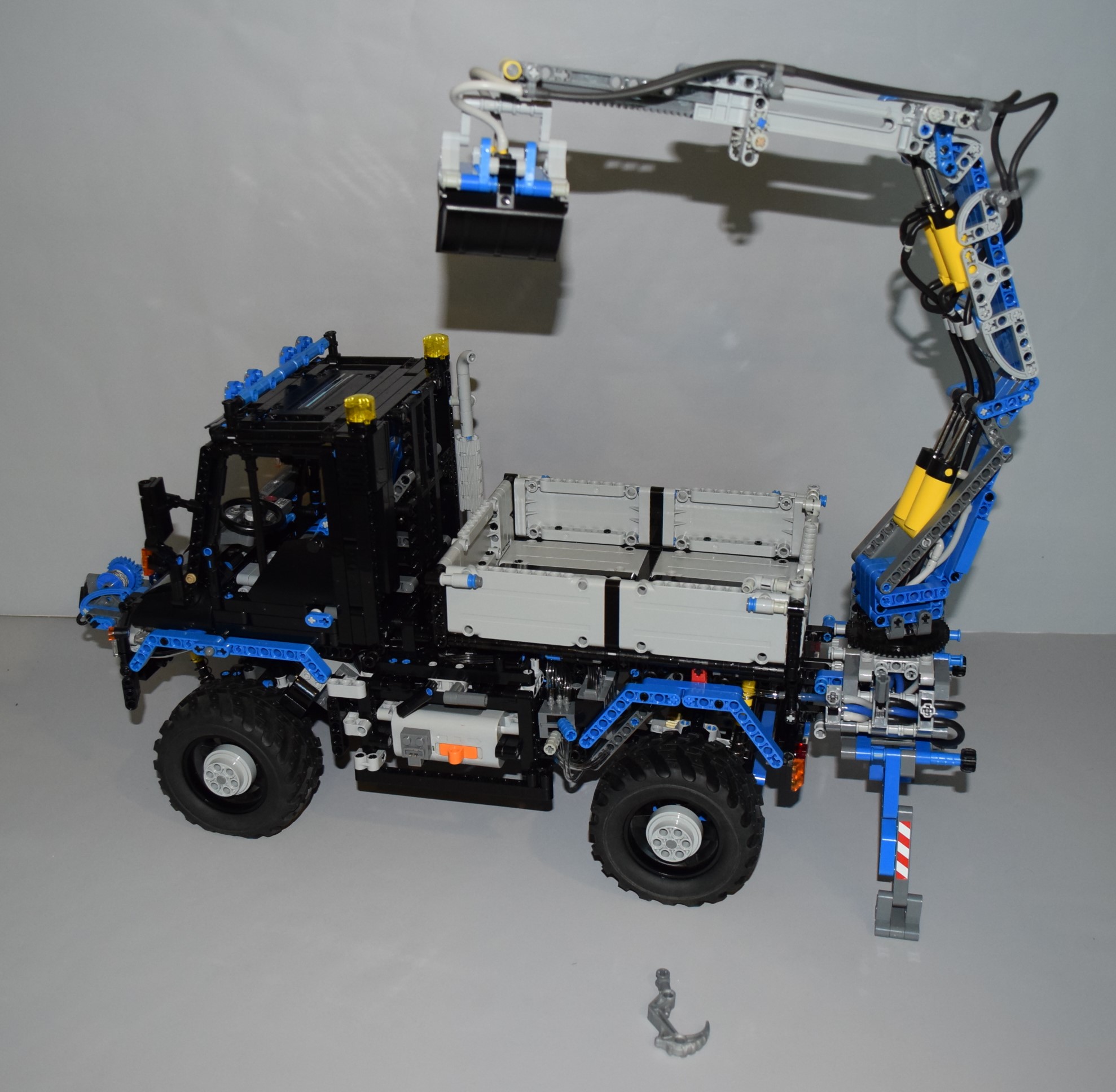

·       Palfinger crane – very compact with 4 pneumatic cylinders, (similar to the one of Nitroeumel1 https://www.youtube.com/watch?v=tvPBUdI0rR0 and Markus Schoenlinner https://www.youtube.com/watch?v=GFF6CXRMVA4 which instructions were used as a guide)

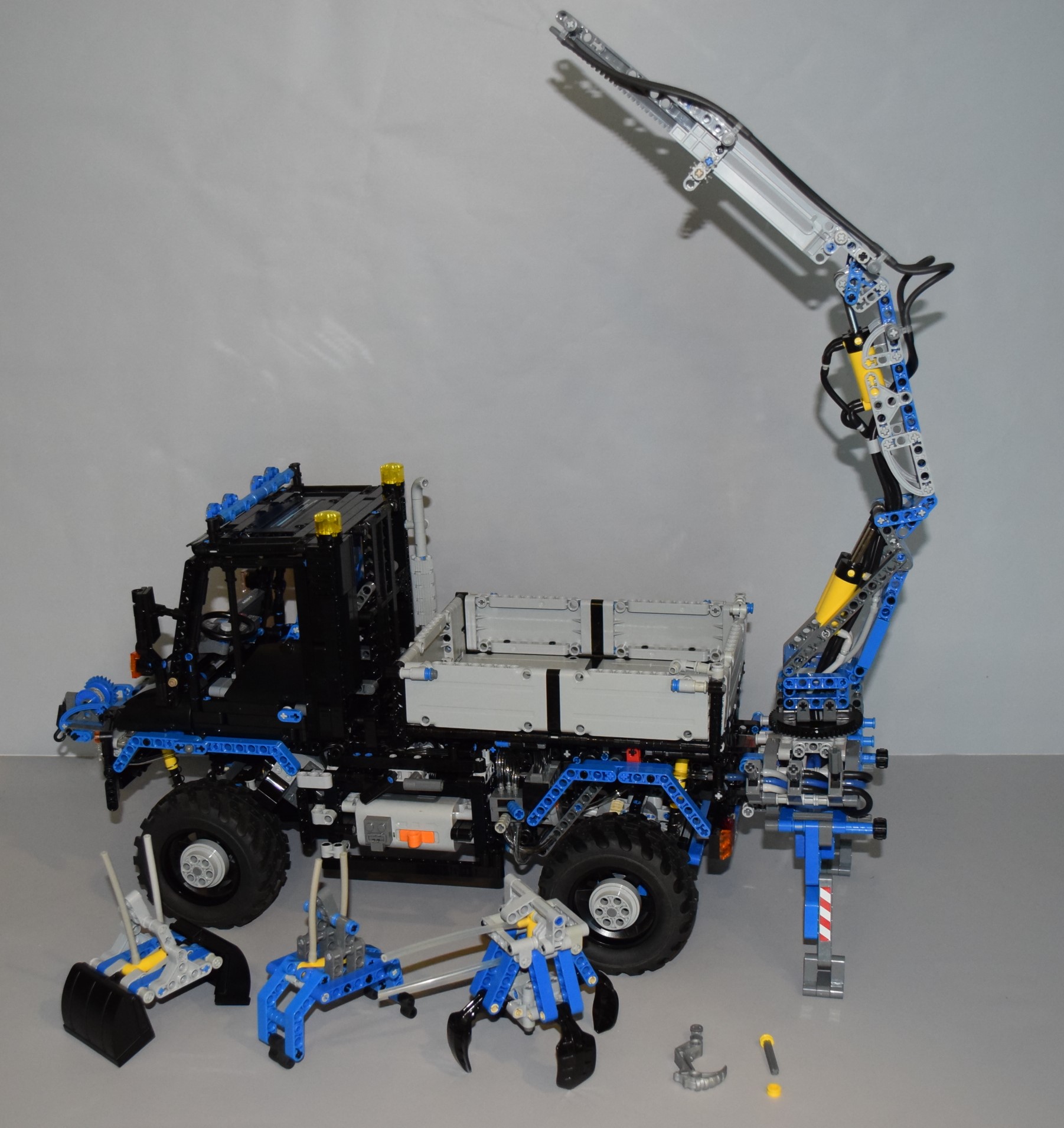

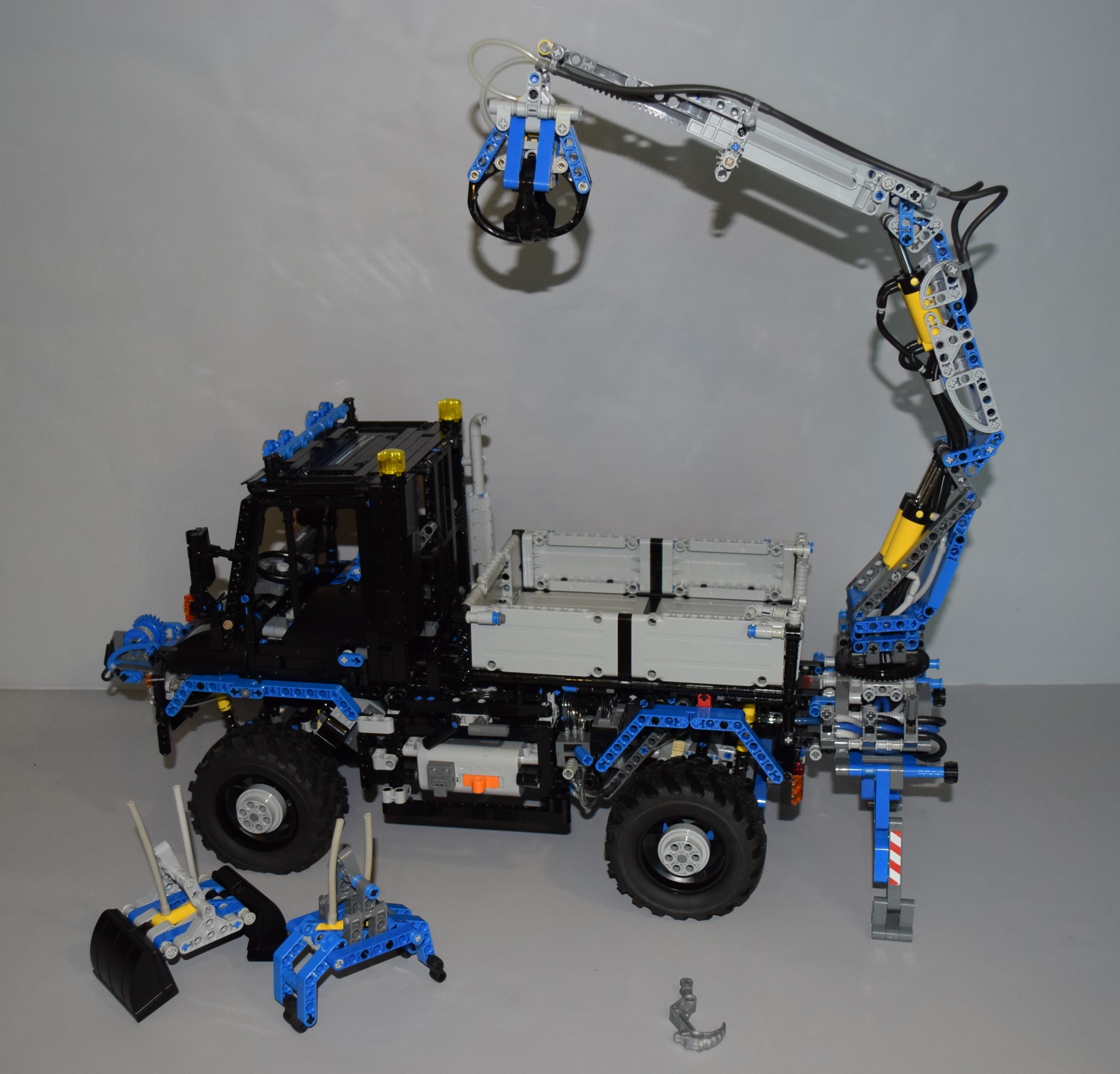

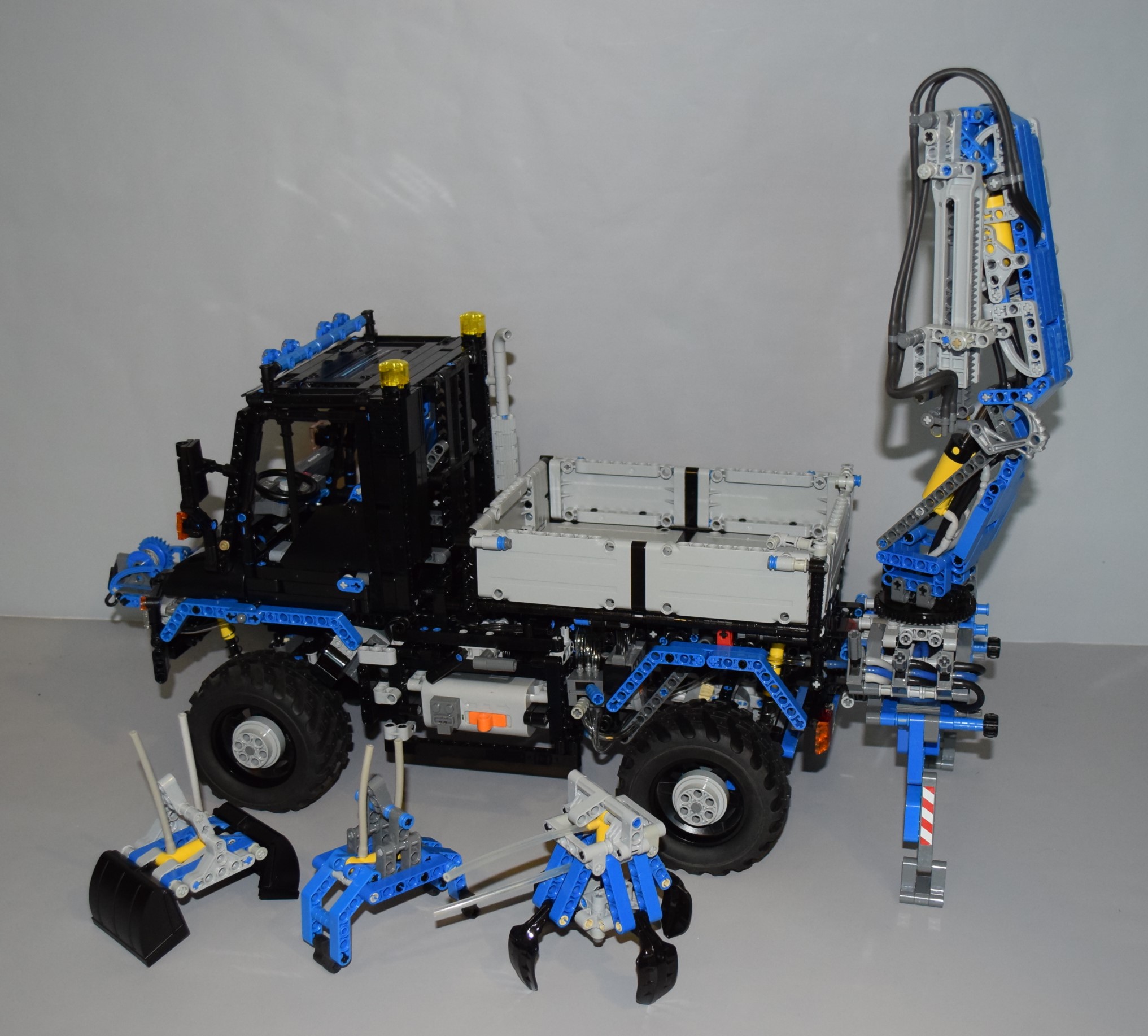

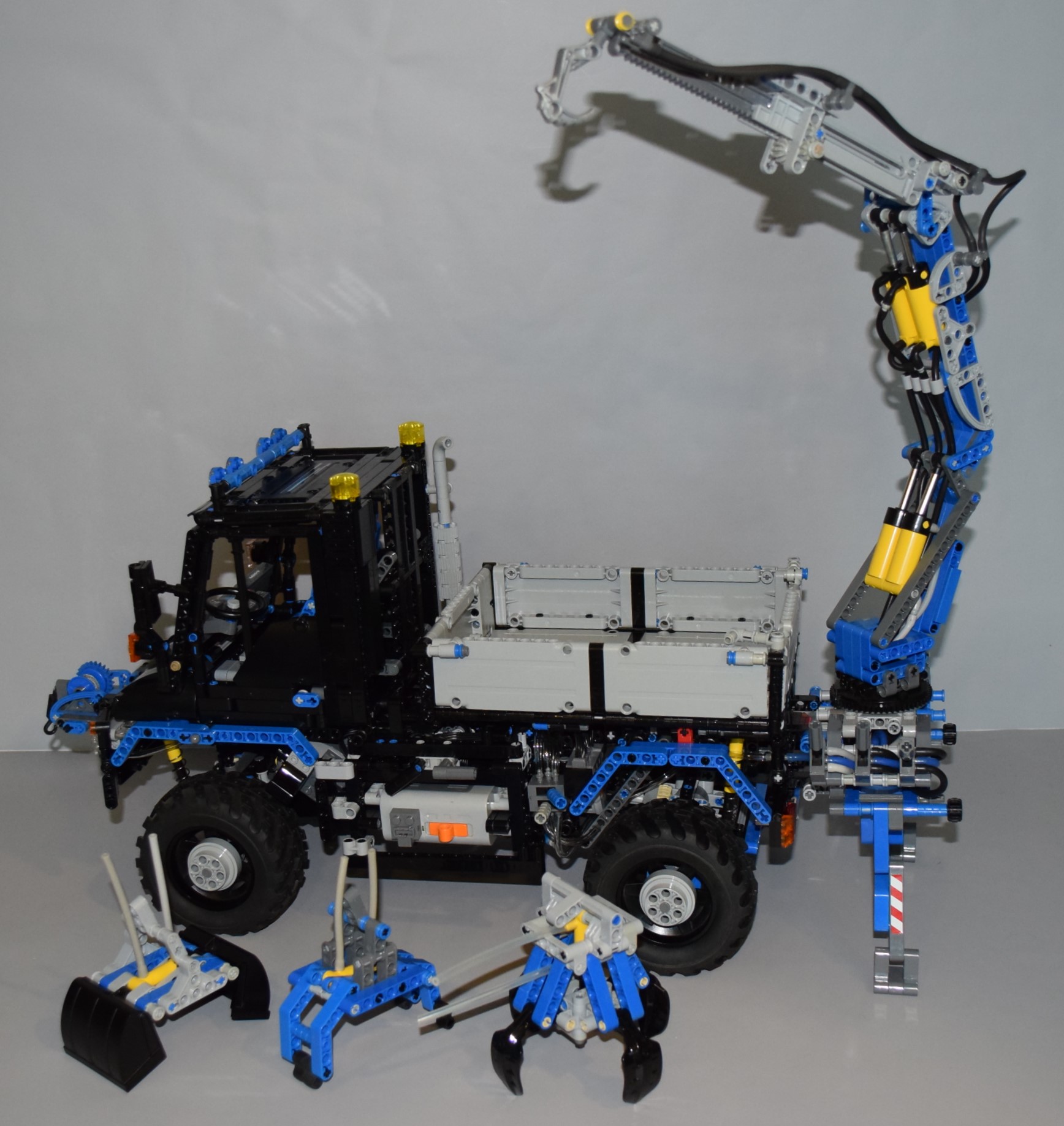

·       Four-finger grapple with pneumatic (similar to 42042)

·       Clam-shell bucket (like 42043)

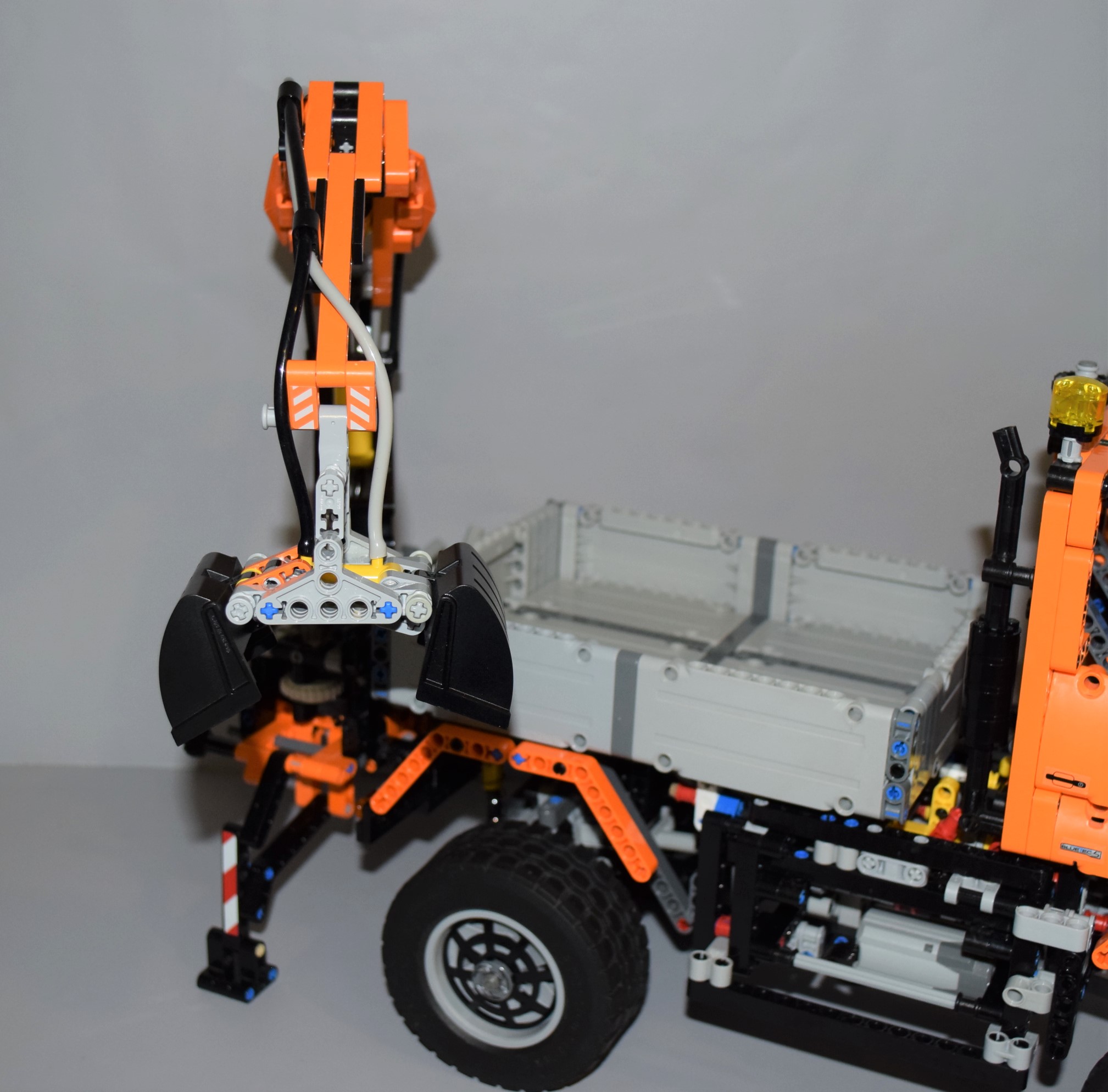

·       Grapple with pneumatic (8110 original)

·       Hook

Power Functions:

·       1x XL Motor (8882-1 Drive)

·       1x Servo Motor (steering)

·       1x M Motor (8883-1 – pump and other functions)

·       3x LED Light (61930c01)

·       1x IR Receiver (8884-1 – drive and steering)

·       1x IR Controller (8885-1 - drive and steering)

·       2x Pole Reverser (bb0339c01, one controls the lights the other the M motor)

·       1x extension cord 50 cm (58118)

Pneumatik:

·       2x grey pumps (99798c01)

·       1x large yellow pump (2797c02 for manual operation)

·       1x blue air tank (67c01)

·       7x Pneumatic-switches (4694cc01, inclusive of snowplough)

·       1x Pneumatic cylinder (47224c01, for the tipper-bed)

·       2x Pneumatic cylinder (47224c01, snowplow)

·       2x Pneumatic cylinder (47224c01, for the original crane)

·       2x Pneumatic cylinder (47224c01, additional for the palfinger original crane)

·       1x Pneumatic cylinder small (x189c01, original grapple)

·       1x Pneumatic cylinder small (x189c01, clamshell bucket)

·       1x Pneumatic cylinder small (x189c01, four-finger grapple)

The below instructions are a collection of the ones which are available on the net.

I have tried to name the authors as good as possible, but for some I could not find the source/ author.
